0.3Mpa Low Pressure Screw Air Compressor

3
2
4
1
3 2 4 1

0.3Mpa Low Pressure Screw Air Compressor

When the main engine is compressed to the working pressure, it will start to exhaust, and there is no need for expansion and decompression to save 20%-50% of electricity. When the pressure requirements and the gas consumption are equal, and the Sollant low-pressure screw air compressor is selected, the cost can be recovered within one year.

  • No gear, no coupling, high rotation efficiency
  • Permanent magnet motor has high energy efficiency and long service life
  • Soft start, reduce the impact on the power grid, save energy by 20%-30% compared with similar air compressors
  • The host specially designed based on low voltage has lower power consumption and more energy saving.
  • There is no frequent loading and unloading, the motor has a longer service life, and the parts are over 15 years old
Request a Quick Quote
Description
Technical Data
More Details
Contact Us Now
Description
  1. The high-efficiency main engine has no intermediate transmission, so there is no loss of energy consumption; direct drive increases reliability and reduces maintenance costs; the large rotor runs at low speed, with higher efficiency, lower noise, lower vibration and lower energy consumption.
  2. High-quality independent oil pump forced lubrication design, using independent oil pump forced lubrication; to ensure sufficient fuel injection and better oil-air mixing ratio under extremely low exhaust pressure (3kg).
  3. Increase the customized oil and gas separation system, and increase the customized oil and gas separation system to ensure the ultimate oil and gas separation effect and ensure that the air oil content is less than 2ppm.
Technical Data
Single-stage low-pressure screw air compressor
Model Working pressure Capacity Power Noise Air outlet
pipe
diameter		 Net weight Dimensions(mm)
Mpa m3/min kW hp dB kg Length Width Height
SLTL-22S 0.3 6.31 22 30 62±3 DN50 1330 1415 1030 1330
0.4 6.29 22 30 62±3 DN50 1330 1415 1030 1330
0.5 6.18 22 30 62±3 DN50 1330 1415 1030 1330
SLTL-37S 0.3 9.28 37 50 65±3 DN65 1420 1900 1200 1650
0.4 9.27 37 50 65±3 DN65 1420 1900 1200 1650
0.5 9.24 37 50 65±3 DN65 1420 1900 1200 1650
SLTL-55S 0.3 15.07 55 75 68±3 DN80 2100 2160 1500 1750
0.4 14.82 55 75 68±3 DN80 2100 2160 1500 1750
0.5 12.8 55 75 68±3 DN80 2100 2160 1500 1750
SLTL-75S 0.3 19.27 75 100 68±3 DN125 2700 2900 1830 2000
0.4 19.24 75 100 68±3 DN125 2700 2900 1830 2000
0.5 14.63 75 100 68±3 DN125 2700 2900 1830 2000
SLTL-90S 0.3 22.25 90 120 73±3 DN125 3800 2900 1830 2000
0.4 22.03 90 120 73±3 DN125 3800 2900 1830 2000
0.5 19.21 90 120 73±3 DN125 3800 2900 1830 2000
SLTL-110S 0.3 30.81 110 150 74±3 DN125 4000 2900 1830 2000
0.4 24.52 110 150 74±3 DN125 4000 2900 1830 2000
0.5 24.39 110 150 74±3 DN125 4000 2900 1830 2000
SLTL-132S 0.3 30.93 132 175 76±3 DN125 4800 2900 1830 2000
0.4 30.72 132 175 76±3 DN125 4800 2900 1830 2000
0.5 30.58 132 175 76±3 DN125 4800 2900 1830 2000
SLTL-160S 0.3 40.8 160 215 76±3 DN150 4800 3400 2050 2250
0.4 40.4 160 215 76±3 DN150 4800 3400 2050 2250
0.5 39.8 160 215 76±3 DN150 4800 3400 2050 2250

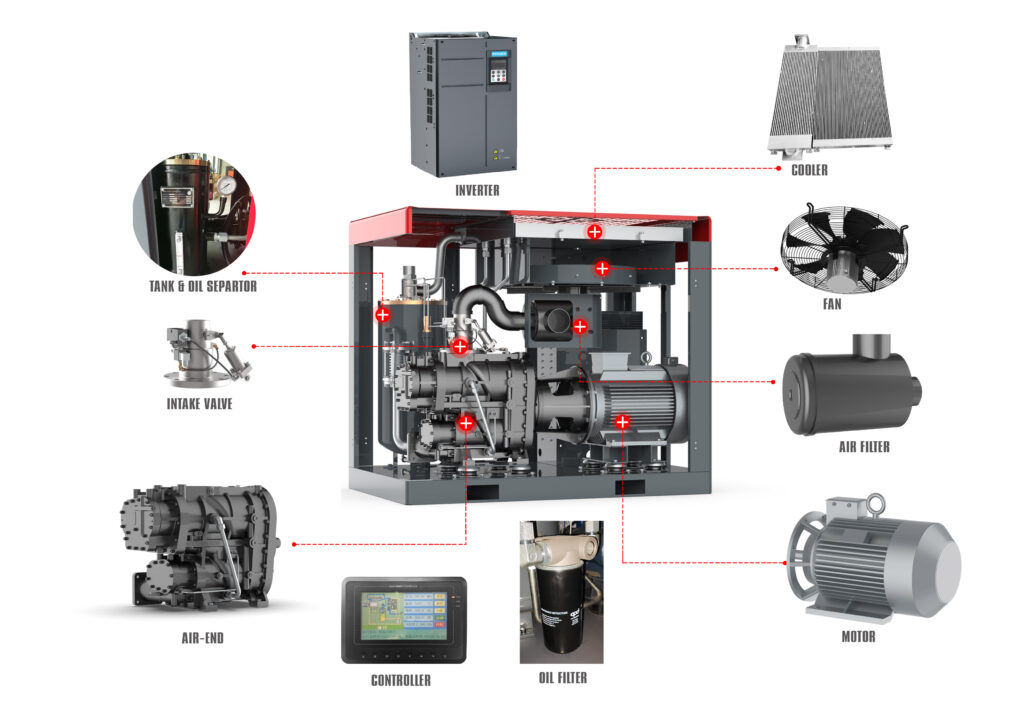

More Details
  1. Screw machine, high efficiency, low speed, the rotor adopts the third generation 5:6 tooth type, which has the characteristics of large head, low noise, low energy consumption, low maintenance cost, high reliability and service life.
  2. Special motor for low-speed compressor, SKF bearing, insulation class F, protection class IP54, to ensure trouble-free operation. The efficiency is higher than similar products. The direct connection model adopts 1:1 direct rotation without increasing the speed-up gear, and has the characteristics of low speed, low noise, reliable operation and long service life.
  3. Large-capacity oil and gas separator, superior quality oil and gas separation elements and gas and liquid filter elements, with advanced design of tertiary oil and gas separation technology, specially designed oil separation core, low oil content, to ensure the high quality of compressed air
  4. Reasonably designed intake valve, wide range of intake adjustment, adjustable capacity valve, small pressure loss, stable action and long life.
  5. The air filter is designed with high dust holding capacity and low flow resistance, which can filter out tiny solid particles in the air, with better dust removal effect, ensuring the normal operation of each part of the system and economical service life .
Contact Us Now

Contact Us For A Quick Quote

Full 0.3Mpa Low Pressure Screw Air Compressor Support

Design Support

Email Support

Packaging Solutions

0.3Mpa Low Pressure Screw Air Compressor

Contact Us Now

Low Pressure Screw Air Compressor Manufacturer in China

Sollant is a professional company specializing in the sales, operation and maintenance of compressed air systems and energy-saving services. It is committed to providing users with stable, high-quality and low-cost compressed air. Provide product and service support for machinery, metallurgy, power generation, textile, chemical industry and other industries! After years of development, the company has a group of professional and technical personnel of air compression fluid equipment and rich experience in on-site engineering management, which can provide users with a full range of technical service support.
