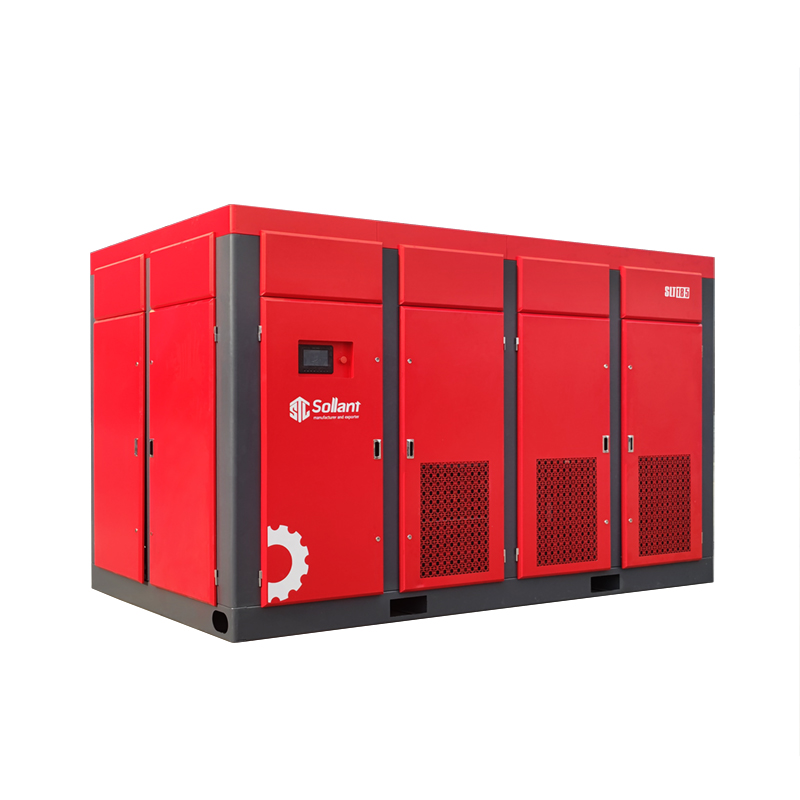

0.5MPa Low Pressure Screw Air Compressor

High reliability, ultra-low noise, energy saving, lower production costs, and at the same time to reduce carbon emissions. Save 30% of electricity Whether it is a new investment or replacing the existing screw compressor with an exhaust pressure of 0.7-0.8Mpa, the low-pressure screw compressor will save more than 30% of the electricity bill, and the electricity bill saved will be less than one. Return on investment within a year.

  • Increase the processing capacity of oil separation barrels and oil separation cores to ensure that the oil content is lower than 2PPM
  • The host specially designed based on low voltage has lower power consumption and more energy saving.
  • Soft start, reduce the impact on the power grid, save energy by 20%-30% compared with similar air compressors
  • There is no frequent loading and unloading, the motor has a longer service life, and the parts are over 15 years old
  • High rotation efficiency without gears and couplings
Request a Quick Quote
Description
Technical Data
More Details
Contact Us Now
Description
  1. The high-efficiency screw compressor host with 0.5Mpa exhaust pressure is specially designed for this purpose. At the same time, we also specially designed a super large oil separator and oil separator to ensure that the fuel consumption is below 2ppm.
  2. The energy-saving series of low-pressure screw compressors are selected, the world-class screw compressors are selected, the low fuel consumption, low noise, five-year warranty and high reliability of the main engine are selected, and more importantly, the electricity bill can be saved by at least 30%.
  3. The product is connected by a whole series of seamless hard pipes, which refuses oil leakage. The main engine is specially designed based on the chemical fiber texturing machine, textile and other industries, and the parts can be traced. The service life of the parts of the low-voltage machine is over 15 years, and the power consumption of the whole machine is lower and more energy-saving.

Technical Data
Single-stage low-pressure screw air compressor
Model Working pressure Capacity Power Noise Air outlet
pipe
diameter		 Net weight Dimensions(mm)
Mpa m3/min kW hp dB kg Length Width Height
SLTL-22S 0.3 6.31 22 30 62±3 DN50 1330 1415 1030 1330
0.4 6.29 22 30 62±3 DN50 1330 1415 1030 1330
0.5 6.18 22 30 62±3 DN50 1330 1415 1030 1330
SLTL-37S 0.3 9.28 37 50 65±3 DN65 1420 1900 1200 1650
0.4 9.27 37 50 65±3 DN65 1420 1900 1200 1650
0.5 9.24 37 50 65±3 DN65 1420 1900 1200 1650
SLTL-55S 0.3 15.07 55 75 68±3 DN80 2100 2160 1500 1750
0.4 14.82 55 75 68±3 DN80 2100 2160 1500 1750
0.5 12.8 55 75 68±3 DN80 2100 2160 1500 1750
SLTL-75S 0.3 19.27 75 100 68±3 DN125 2700 2900 1830 2000
0.4 19.24 75 100 68±3 DN125 2700 2900 1830 2000
0.5 14.63 75 100 68±3 DN125 2700 2900 1830 2000
SLTL-90S 0.3 22.25 90 120 73±3 DN125 3800 2900 1830 2000
0.4 22.03 90 120 73±3 DN125 3800 2900 1830 2000
0.5 19.21 90 120 73±3 DN125 3800 2900 1830 2000
SLTL-110S 0.3 30.81 110 150 74±3 DN125 4000 2900 1830 2000
0.4 24.52 110 150 74±3 DN125 4000 2900 1830 2000
0.5 24.39 110 150 74±3 DN125 4000 2900 1830 2000
SLTL-132S 0.3 30.93 132 175 76±3 DN125 4800 2900 1830 2000
0.4 30.72 132 175 76±3 DN125 4800 2900 1830 2000
0.5 30.58 132 175 76±3 DN125 4800 2900 1830 2000
SLTL-160S 0.3 40.8 160 215 76±3 DN150 4800 3400 2050 2250
0.4 40.4 160 215 76±3 DN150 4800 3400 2050 2250
0.5 39.8 160 215 76±3 DN150 4800 3400 2050 2250

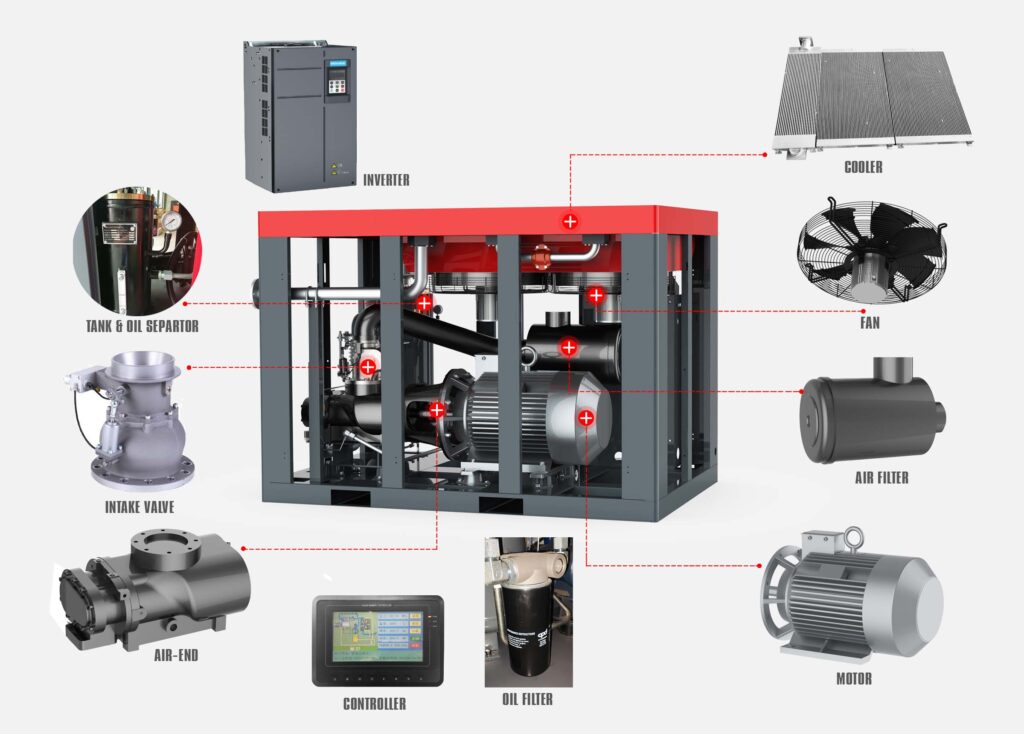

More Details
  1. The main engine uses the world's most advanced rotor technology, with the best linear speed, always in a high-efficiency operation state, and its energy efficiency is significantly ahead of similar products in the market. The high-rigidity rotor is designed to prevent internal leakage and ensure long-life and reliable operation.
  2. High-quality motor, F-class insulation grade, IP54 fully enclosed dust-proof motor, can run safely in harsh working environment
  3. Electrical system, standardized design, safe and reliable, professional wiring interface, reasonable wiring, concise and clear, easy to maintain, the main contactor uses Siemens electrical components, to ensure the reliability of the electrical system, good phase sequence protection function, to ensure that the air compressor Reliable operation
  4. Oversized oil cooler design: even in a high temperature and dusty environment, it can ensure that the lubricating oil temperature is in the normal range and ensure the safety of the compressor
  5. Oil and gas separator, three-stage oil and gas separator design, reduce the pressure drop of compressed air, reduce power consumption, reduce the oil content of compressed air by 17%, reduce the energy consumption and maintenance cost of compressed air post-processing

Contact Us Now

Contact Us For A Quick Quote

Full 0.5MPa Low Pressure Screw Air Compressor Support

Design Support

Email Support

Packaging Solutions

0.5MPa Low Pressure Screw Air Compressor

Contact Us Now

Low Pressure Screw Air Compressor Manufacturer in China

Sollant is a professional company specializing in the sales, operation and maintenance of compressed air systems and energy-saving services. It is committed to providing users with stable, high-quality and low-cost compressed air. Provide product and service support for machinery, metallurgy, power generation, textile, chemical industry and other industries! After years of development, the company has a group of professional and technical personnel of air compression fluid equipment and rich experience in on-site engineering management, which can provide users with a full range of technical service support.

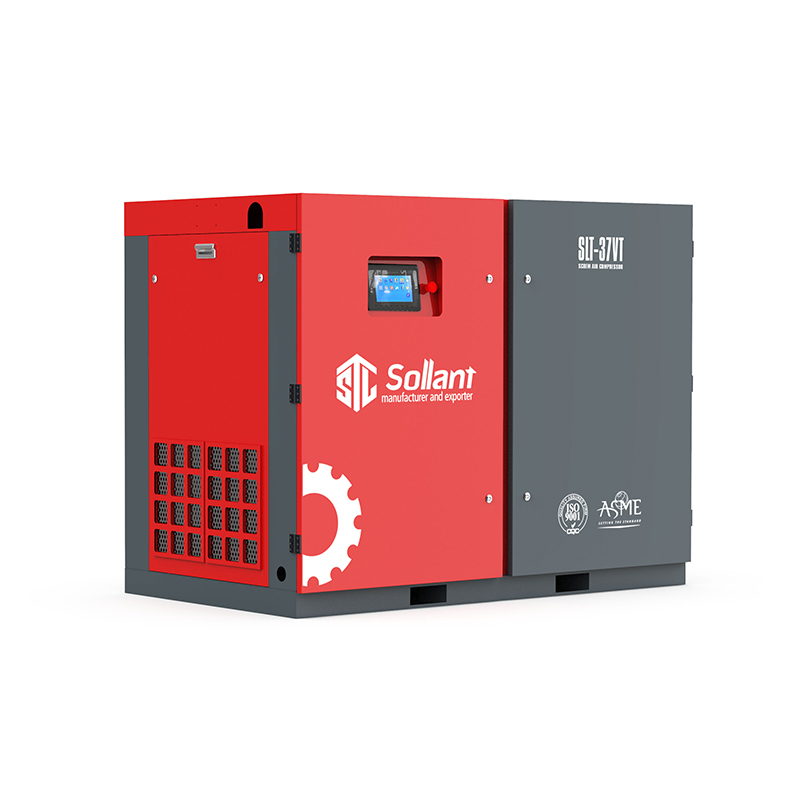

37KW Two Stage Screw Air Compressor

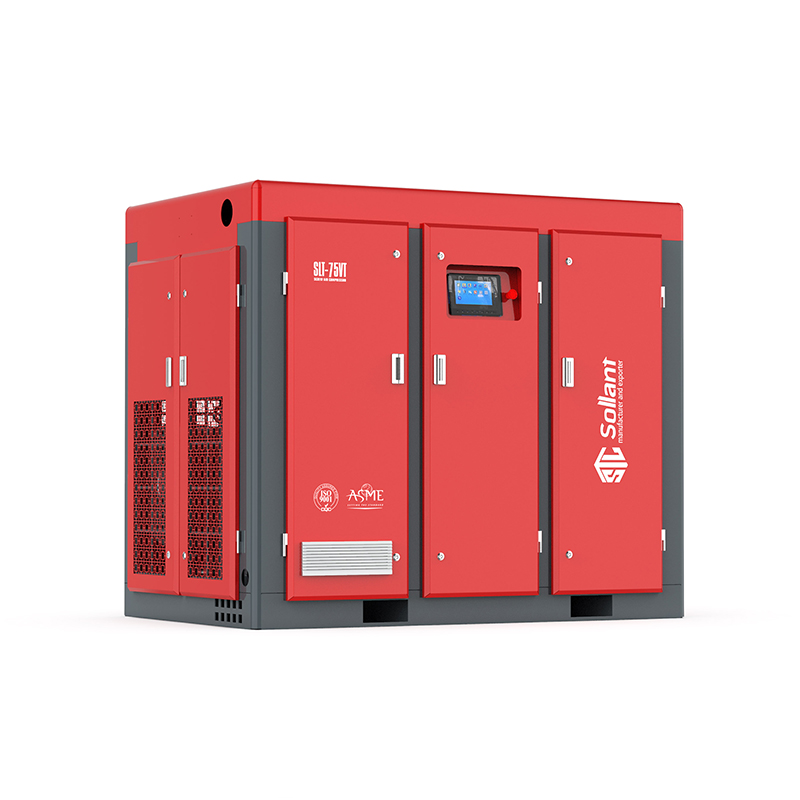

75KW Low Pressure Screw Air Compressor

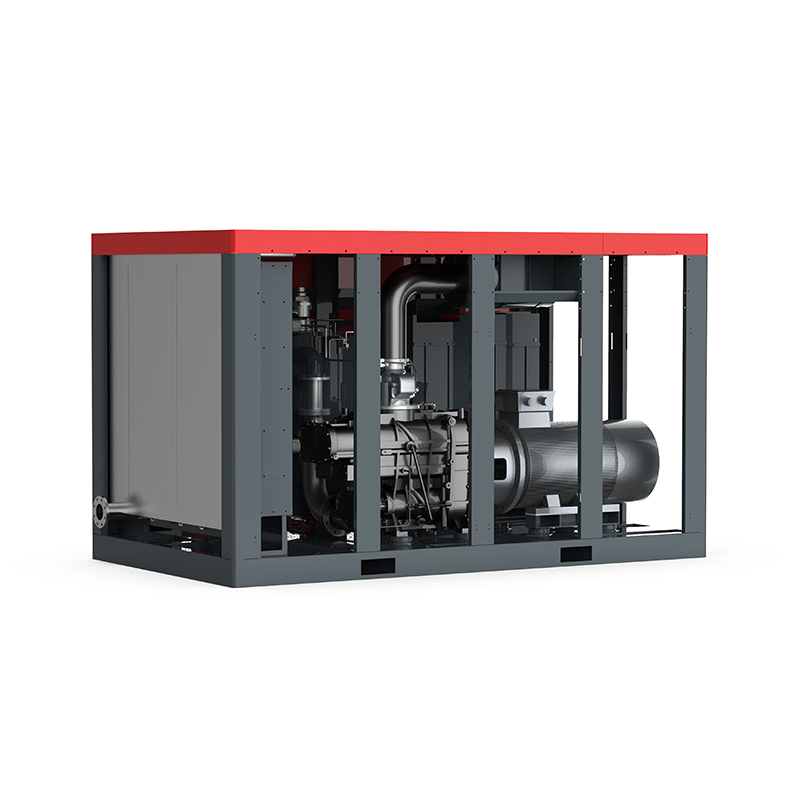

185KW Low Pressure Screw Air Compressor
