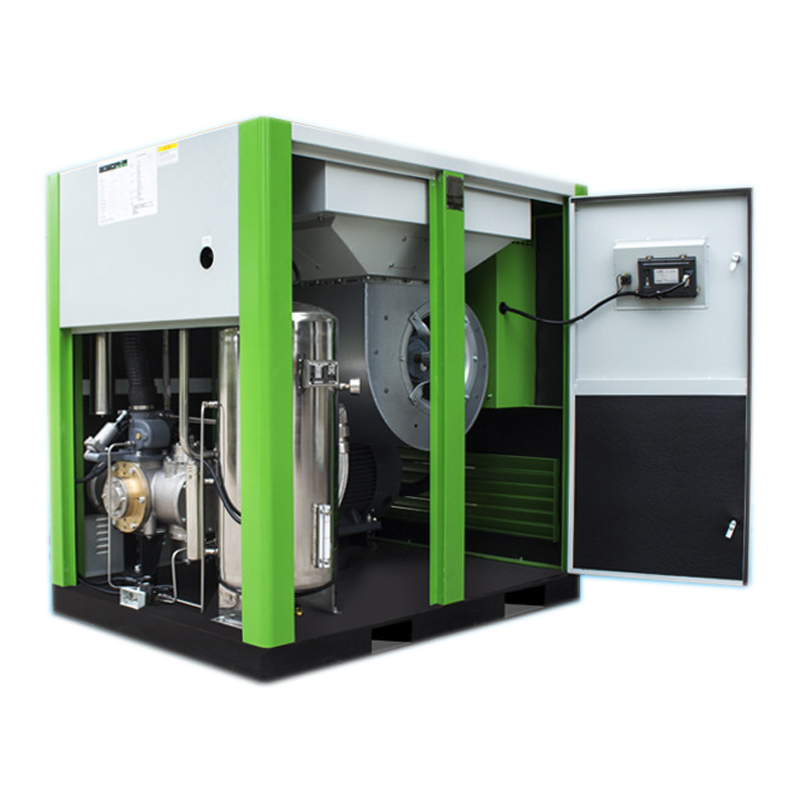

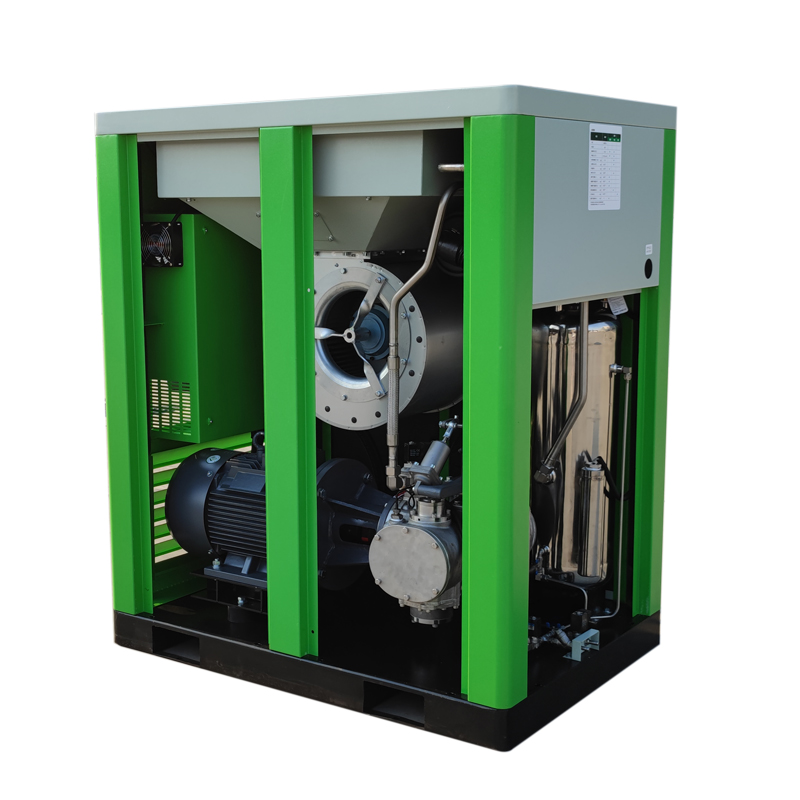

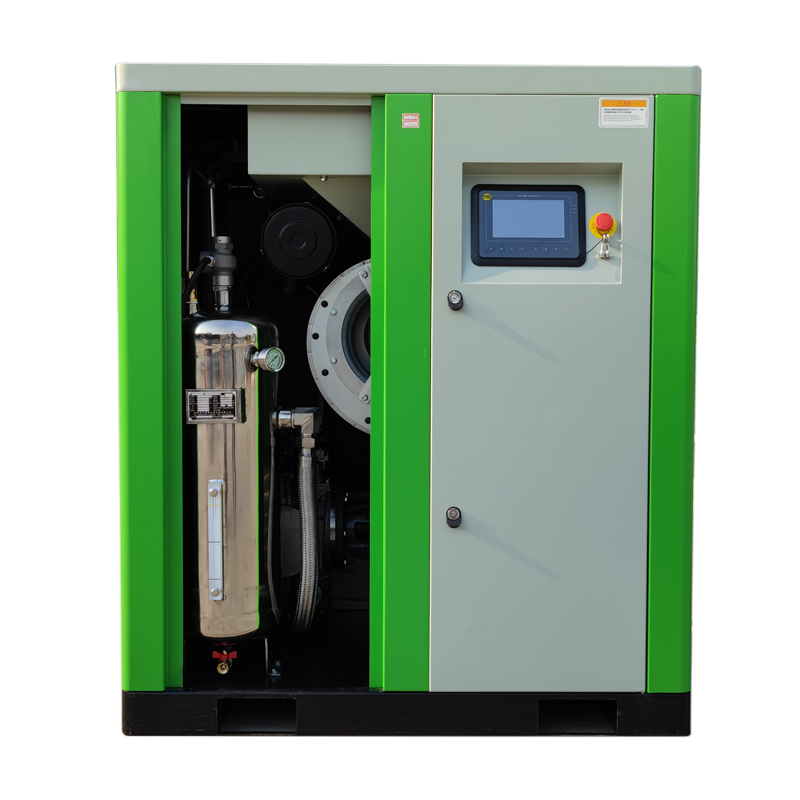

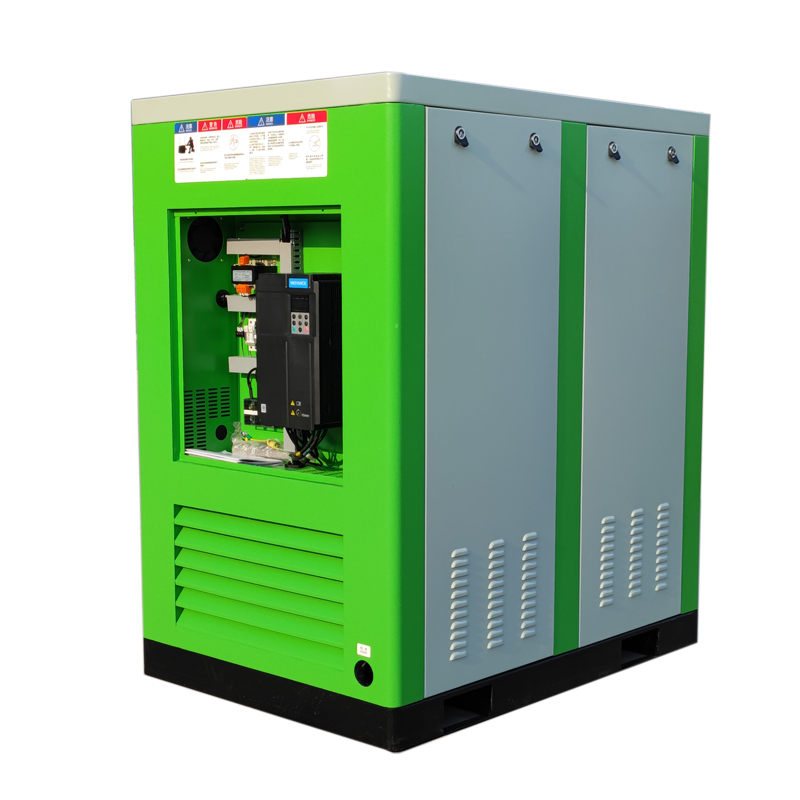

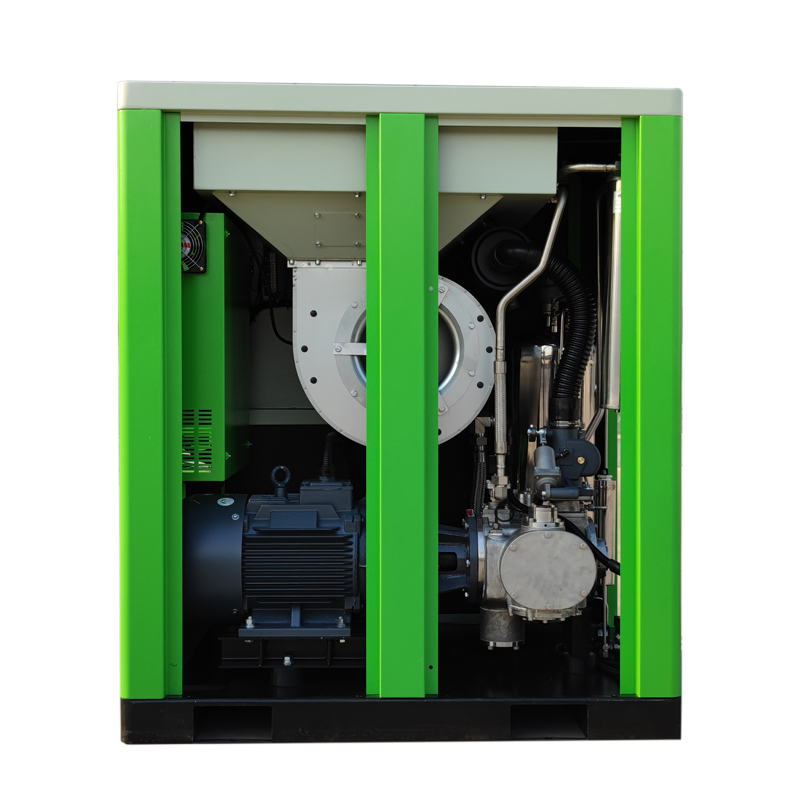

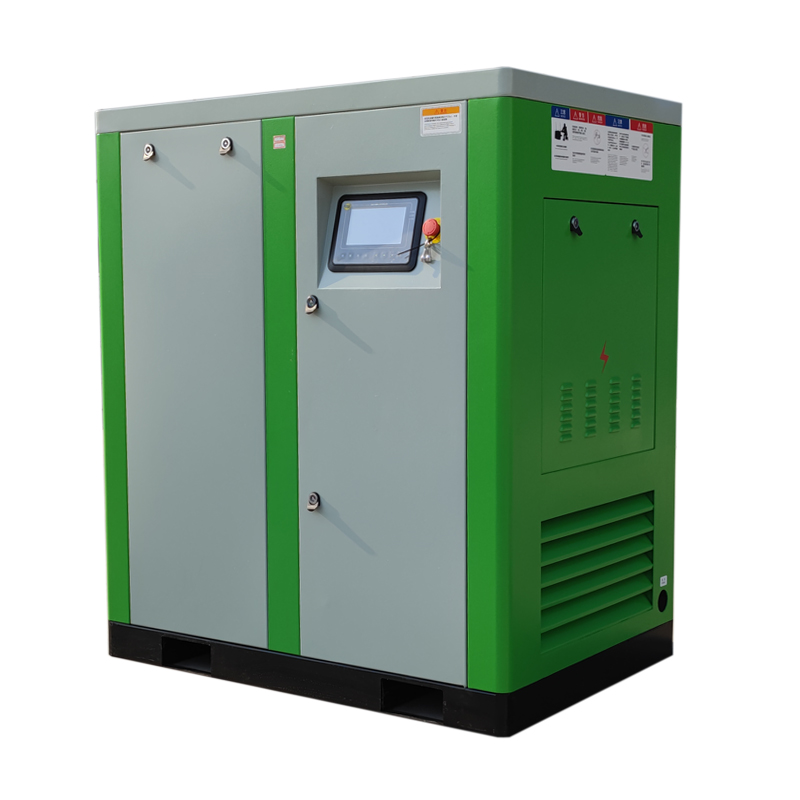

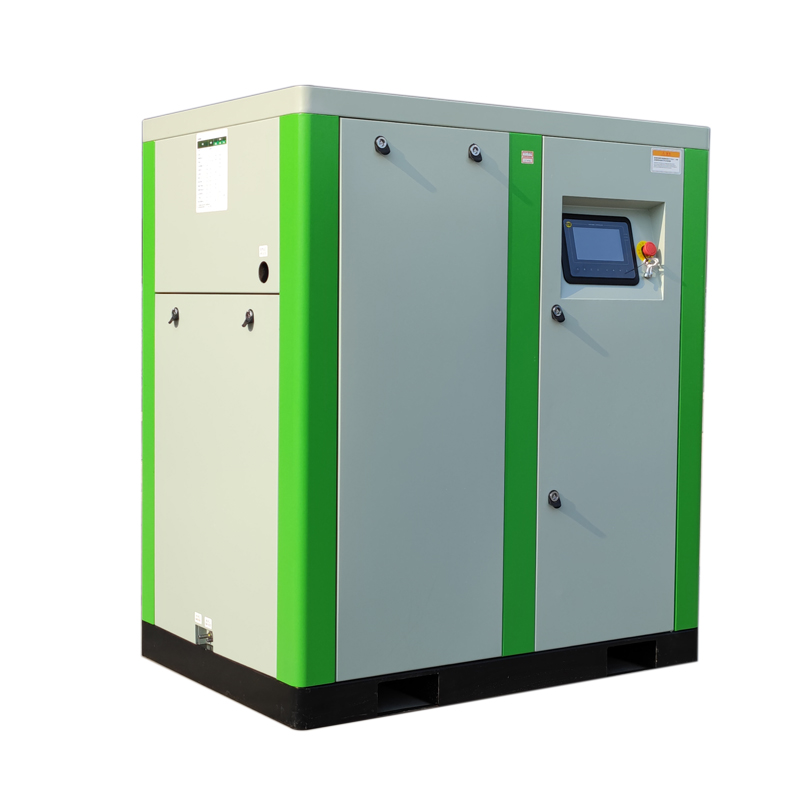

Permanent magnet VSD water lubricated oil-free air compressor

The oil-free water-lubricated screw air compressor adopts the German original all-stainless steel screw host, which proves its technical quality in terms of air quality, energy saving, and high reliability of operation. Due to its own structure, it creates a fully symmetrical balanced compression. Replacing oil with water to achieve the four functions of lubrication, cooling, sealing and noise reduction

Water is used as the compression sealing and cooling medium, and the use cost is low.
Through the sealing and isolation technology, the compressed air is cleaner and can be pure and oil-free.
The volumetric efficiency is higher and more energy-saving. The oil-water-lubricated air compressor saves more than 15% energy than the secondary dry twin-screw, and saves more than 36% than the first-level dry twin-screw.
Avoid frequent and expensive main engine maintenance of dry screw, more stable and reliable.
. Lower noise, the axial and radial forces of the single screw are balanced, and the star wheel of the oil-free water-lubricated air compressor rotates freely with the screw under water film lubrication, so the main engine parts run smoothly under low load

Request a Quick Quote

Description

Technical Data

More Details

Description

1.100% oil-free: using the world's most advanced oil-free water-lubricated screw compressor technology, compared with dry twin-screw, there is no lubricating oil in all parts of the air compressor, ensuring 100% oil-free compression and providing the most reliable oil-free compression Air Solutions.

Low operating cost: The Euler method air compressor has excellent operating stability and less maintenance workload. The latest generation of microcomputer controller that comes with the air compressor has a perfect self-management function. It does not need to be supervised by special personnel. To achieve unattended operation, reduce your operating costs.
High reliability: The compressor has few parts and no wearing parts, so it operates reliably and has a long service life. Convenient operation and maintenance: high degree of automation, operators do not need to undergo long professional training, and can realize unattended operation.

Technical Data

Model	Working Pressure		Capacity		Power		Noise	Air outlet pipe diameter	Net weight	Dimensions（mm）
Model	bar	psig	m³/min	cfm	kw	hp	dB	Air outlet pipe diameter	Kg	Length	Width	Height
SLTOF-7FW	7	102	1.2	42	7.5	10	58±3	G1″	500	1135	800	1000
	8	116	1.1	39	7.5	10	58±3	G1″	500	1135	800	1000
	10	145	1	35	7.5	10	58±3	G1″	500	1135	800	1000
SLTOF-11FW	7	102	1.6	57	11	15	58±3	G1″	500	1135	800	1000
	8	116	1.5	53	11	15	58±3	G1″	500	1135	800	1000
	10	145	1.3	46	11	15	58±3	G1″	500	1135	800	1000
SLTOF-15FW	7	102	2	71	15	20	60±3	G1″	550	1400	1000	1200
	8	116	1.8	64	15	20	60±3	G1″	550	1400	1000	1200
	10	145	/	/	15	20	60±3	G1″	550	1400	1000	1200
SLTOF-18.5FW	7	102	3.1	109	18.5	25	61±3	G1″	600	1400	1000	1200
	8	116	2.8	99	18.5	25	61±3	G1″	600	1400	1000	1200
	10	145	2.5	88	18.5	25	61±3	G1″	600	1400	1000	1200
SLTOF-22FW	7	102	3.7	131	22	30	61±3	G1″	655	1400	1000	1200
	8	116	3.4	120	22	30	61±3	G1″	655	1400	1000	1200
	10	145	3	106	22	30	61±3	G1″	655	1400	1000	1200
SLTOF-30FW	7	102	5.2	184	30	40	64±3	G11/2″	1150	1920	1170	1320
	8	116	4.7	166	30	40	64±3	G11/2″	1150	1920	1170	1320
	10	145	4.3	152	30	40	64±3	G11/2″	1150	1920	1170	1320
SLTOF-37FW	7	102	6.1	215	37	50	64±3	G11/2″	1200	1920	1170	1320
	8	116	5.6	198	37	50	64±3	G11/2″	1200	1920	1170	1320
	10	145	5	177	37	50	64±3	G11/2″	1200	1920	1170	1320
SLTOF-45FW	7	102	7.5	265	45	60	66±3	G11/2″	1320	1920	1170	1320
	8	116	6.8	240	45	60	66±3	G11/2″	1320	1920	1170	1320
	10	145	6	212	45	60	66±3	G11/2″	1320	1920	1170	1320
SLTOF-55FW	7	102	10	353	55	75	66±3	DN50	1520	1930	1320	1535
	8	116	9	318	55	75	66±3	DN50	1520	1930	1320	1535
	10	145	7.8	275	55	75	66±3	DN50	1520	1930	1320	1535
SLTOF-75FW	7	102	13	459	75	100	70±3	DN50	1620	1930	1320	1535
	8	116	12	424	75	100	70±3	DN50	1620	1930	1320	1535
	10	145	10	353	75	100	70±3	DN50	1620	1930	1320	1535
SLTOF-90FW	7	102	15.5	547	90	120	70±3	DN50	1800	1930	1320	1535
	8	116	14	494	90	120	70±3	DN50	1800	1930	1320	1535
	10	145	12.5	441	90	120	70±3	DN50	1800	1930	1320	1535
SLTOF-110FW	7	102	20	706	110	150	72±3	DN80	3100	2300	1600	1750
	8	116	18	636	110	150	72±3	DN80	3100	2300	1600	1750
	10	145	16	565	110	150	72±3	DN80	3100	2300	1600	1750
SLTOF-132FW	7	102	25	883	132	175	72±3	DN80	3250	2300	1600	1750
	8	116	23	812	132	175	72±3	DN80	3250	2300	1600	1750
	10	145	20	706	132	175	72±3	DN80	3250	2300	1600	1750
SLTOF-160FW	7	102	27	953	160	215	72±3	DN100	4500	2860	1500	2020
	8	116	25.5	901	160	215	72±3	DN100	4500	2860	1500	2020
	10	145	24	848	160	215	72±3	DN100	4500	2860	1500	2020
SLTOF-185FW	7	102	30	1059	185	250	74±3	DN100	4500	2860	1500	1750
	8	116	28	989	185	250	74±3	DN100	4500	2860	1500	1750
	10	145	25	883	185	250	74±3	DN100	4500	2860	1850	1750
SLTOF-200FW	7	102	36	1271	200	270	74±3	DN125	4800	3150	1850	1750
	8	116	33	1165	200	270	74±3	DN125	4800	3150	1850	1750
	10	145	27	953	200	270	74±3	DN125	4800	3150	1500	1750
SLTOF-250FW	7	102	43	1519	250	350	74±3	DN125	5200	3150	1500	1750
	8	116	41	1448	250	350	74±3	DN125	5200	3150	1500	1750
	10	145	38	1342	250	350	74±3	DN125	5200	3150	1500	1750

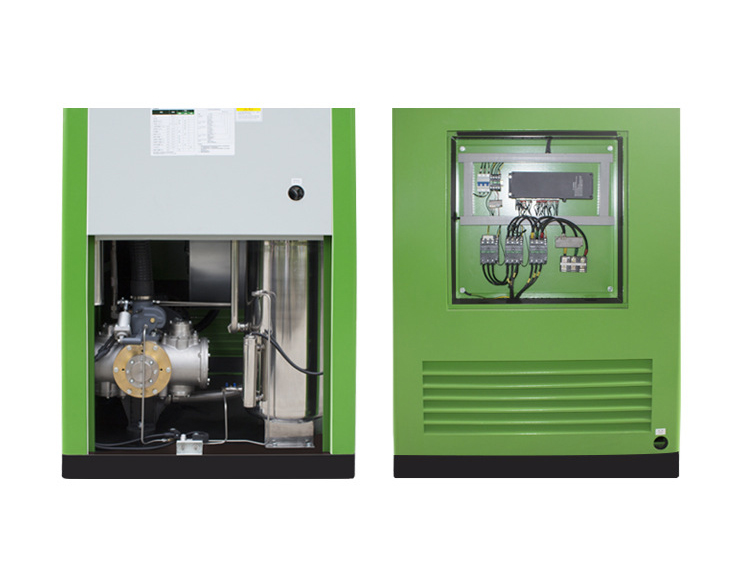

More Details

The motor is a special special motor, SKF bearing, insulation class F, protection class IP54 to ensure trouble-free operation. The efficiency is 3-5% higher than similar products.
The water filter adopts a spin-on water filter filtered by high-end aviation materials, and the effect is 20% higher than that of the conventional filter element, which effectively prolongs the normal service life of the host.
Large-capacity water-gas separator, high-quality water-gas separation elements and gas and liquid filter elements, together with advanced designed tertiary water-gas separation, the water content is controlled below 3ppm to ensure the high quality of compressed air.
It is designed with high dust holding capacity and low flow resistance, which can filter out tiny solid particles in the air, and the dust removal effect reaches 99.5%, ensuring the normal operation of each part of the system and the economical service life.
Advanced design of intake valve, intake adjustment range of 0-100%, capacity adjustment valve adjustment, small pressure loss, stable action and long life. The world's top screw machine, high efficiency, low noise, low energy consumption, low maintenance cost, the best reliability and service life.
